    ( Please email me with any comments , corrections , other questions on this material -- BobA )

    Y K ?

    Why have I moved from ancient flat APL , skipping the great modern nested APLs , all the way to the youngest , most independently minded evolute of this language family ? What are differences , the pros and cons of K versus other APLs and Ken Iverson's own evolute J ?

     One year ago , over Thanksgiving 2000 , I created the
     following loop in Arthur Whitney's "K" language :
       .CoSy.Current : , " Current ,: , \"  \" " : " r : . * _v _i "
       `show $ `.CoSy.Current
     This loop displays a window with the expression
      Current ,: , "     "
      in it .
     If you right_click  long since evolved to  F6  the line , it is executed in K .
     Executing the line appends another ( blank ) line
     to the window .
     I said at the time :
       I have now moved , in a very fundamental sense ,
       into this new environment from the 16 year old
       simple APL underlying the CoSy environment I
       have lived in all these years .
     Why have I moved from ancient flat APL , skipping the great modern
     nested APLs , all the way to the youngest , most independently minded
     evolute of this language family ?  What are differences , the pros
     and cons of  K  versus other APLs and Ken Iverson's own evolute  J ?
     There are 2 aspects of  K which move beyond and differentiate it
     from traditional APLs : its  structure  , and its  notation  .
     I have migrated to  K  because , thru convergent evolution , its
     structure best incorporates the ideas presented in my
      Low Down Objects  (LDO) .
     The notation , while extraordinarily expressive in addressing this
     structure , is more complex and further from normal human language
     than APL's infix . Like  J  , it's learnability and readability also
     suffers from reversion to the standard ASCII character set from APL's
     extended set .  Combined with the nearly universal failure of
     programming languages to appreciate the brilliance of Charles Moore's
     use of white space as the fundamental delimiter in his FORTH , the
     limited available symbols are overloaded to the bloody max .
     In this newsletter I'll discuss the structure , leaving the more
     complex issues of notation til the next issue .
     Ken Iverson generalized the original APL from the notation of matrix
     algebra . Its data objects were rectangular arrays of numbers or
     characters . Even this  provided power and expressiveness far beyond
     other languages of the time . This is the generation of APL old CoSy
     was built in .
     By the late `70s , the big issue was how to generalize to "ragged"
     arrays .  Backus , in his Turing Award lecture about that time , simply
     pointed out that rectangular arrays are just special cases of lists of
     lists where all the lists at all levels 'down to some level' for  K's  ^  shape function  are the same length .
     Generalizing arrays implied generalizing their data types to include
     arrays ( lists ) themselves .
     A natural further generalization of these now hierarchical data
     structures was to extend them to include the programming structures
     themselves . In this , APLs were playing catchup to Object oriented
     languages such as Alan Kay's SmallTalk . John Scholes and Peter Donnelly's
     namespaces are perhaps the cleanest implementation .
     By this time , I think the fundamental data types required to construct
     a system were becoming clear - as outlined in " Low Down Objects " .
     Arthur , having the advantage of starting from a clean slate ,
     implemented such a structure .
     There are 12 data types in K . Here is Arthur's typically succinct
     documentation of  4:  which returns an integer denoting the type .
     4:x     type: atom(1 to 7)[ifcsdnx] list(0 to -4)[KIFCS]
     ( The function
       nc : { "SCFIKifcsdnx" 4 + 4: x }
      included in  CoSy  returns the characters . )
     These types are :
      -4  S  list of symbols                `a `text `.CoSy.newjob `"chars"
      -3  C  list of characters             "Any character string "
      -2  F  list of floating numbers       0.0 2.718 1.414 1.0
      -1  I  list of integers               0   2716  707   1
       0  K  K list  ~  list of lists  ~  list of pointers
       1  i  integer                        2
       2  f  floating number                2.718
       3  c  character                      "a"
       4  s  symbol                         `a
       5  d  dictionary
       6  n  null   denoted by  _n          _n
       7  x  expression  ( function )       { ( +/ x ) % # x }
     Note that , as per LDO , type 0 is list of lists . The several
     types with negative values are just homogeneous lists allowing
     optimized representation of various fundamental data types .
     In addition to the traditional character and number types , K adds
     null , symbol , expression , and dictionary .
     Null , whose main attribute is that it is identical with itself and
     nothing else , is an idea I wrote about in an APL Quote Quad letter
     back in the `80s titled something like
      " The minimal APL sentence :  SINK NIL
       Do nothing with nothing " .
     I believe most APLs have implemented such a concept by now .
     Since the beginning ( ~ 1963 ) the internal structure of APLs has
     been a table of symbols pointing to values , which may be one of
     the data types above including  functions ( expressions ) .
     The beauty of K is that it openly implements this structure as
     dictionarys .
     A dictionary is a list of 3 item lists . Each 3 item list consists
     of a symbol , a value , and an attribute dictionary ( a very useful
      concept from the Lisp world ) .
     The only difference between a list and a dictionary is a flip of
     a bit in its header saying its type is 5 rather than 0 .
     The profoundly overloaded dot , "." , whose basic meaning
     is "execute" , converts lists to dictionaries and back .

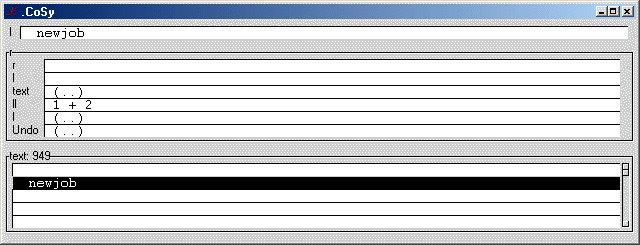

     To make this concrete , here are displays from current K.CoSy
     of executing ( "f6"ing Early on , I changed 'right click' execution back to my traditional 'f6'  ) various lines displayed in  .CoSy.text ,
     which , of course , is just a list of character lists .
     newjob is the prototype for Job with a continuing tip o the hat to Steve  dictionaries like K.CoSy  itself .
     and below ,

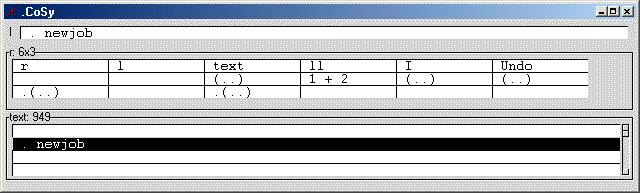

      . newjob
     You see the display of the dictionary .CoSy shows three of its
     variables , l , r , and text .  Tapping  F6  on a line in text
     executes the line , trapping any errors , and displays
     the line in l and the result in r .
     Note in both displays that the value of ll , which holds the line
     before the last executed Y is this needed , ka ?  , happens to be the string 1 + 2 .
     Note also that (..) is the display notation of a list , and .(..)
     is the display of a dictionary .
     Note further that the view of newjob as a dictionary , that is ,
     as itself , shows each of the names ( symbols ) defined in it , with
     their associated values . Attributes are not shown .
     On the other hand , viewed as the equivalent list of 3 item lists ,
     you can see that just 2 objects in the dictionary , r and text ,
     have the third item , their attribute dictionary , defined . We'll
     get back to this in a moment .
    Tightly Coupled User Interface  :
     Crucial to the extreme rapidity of development in K , and therefore
     K.CoSy is that every object has a tightly coupled "GUI" Graphical User Interface
     representation . Along with triggers and dependencies ,
     these notions , apparently evolved during the development of A+
     at Morgan Stanley , are far beyond anything I conceived of , or
     know of in other APLs .
     The format function $ with the symbol `show as its
     left argument  displays the object named on its right .
       `show $ `newjob
     Notice that the object's label defaults to the object's full name ,
     in this case : .CoSy.newjob .
     newjob is an object in the dictionary CoSy which is in the root
     dictionary dot , . .
     Everything you create in  K  is just an object in the
     root dictionary . The K-tree is everything in the root dictionary
     including everything in every dictionary which may be defined in the
     root dictionary , and so on , and so on .
     Names in dictionaries in dictionaries , etc , are addressedabsolutely
     by catinating the names of the dictionaries down to the object with
     dots .  Thus ".CoSy.newjob" .
    Attribute Dictionaries
     While , as with any other dictionary , you can define any words
     you want , in attribute dictionaries a number of names have special
     meanings to the system . In particular , a number of words control
     the display of objects and actions of keystrokes .

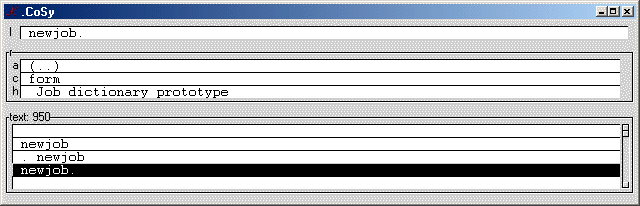

     So how do we access that third item in each definition ?
     Would you believe with a dot , . ?
     A suffixed dot on a name references its attributes :
     Notice that dot does care very much about white space around it .
     You see newjob has 3 words defined in its attribute dictionary .
     There's still a question of how to reference them because for instance ,
     newjob.a would be the name of a variable like newjob.text
     or newjob.r . Well , how 'bout another dot ?
     Essentially the name is
      ` $ "newjob." , "." , "a"
     with the second dot acting as the conjunction .

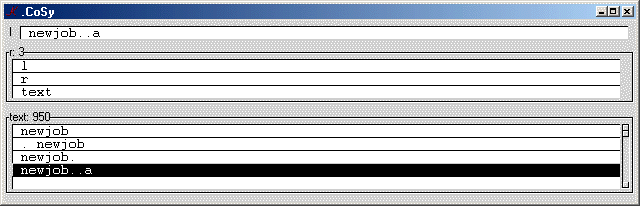

     You will observe that newjob..a , which stands for arrangement ,
     is a list of the names of the displayed items in newjob in the order in
     which they are displayed . Same as with .CoSy :
      .CoSy..a  ~  .CoSy.newjob..a
     The attribute dictionaries on 2 variables r and text above
     contain the definitions of the function and control keys when working
     in those variables . Click  KeyHelp.gif  to see recent definitions .
     That's about it for the fundamental structure of K . The speed
     of  K  comes in large part from its simplicity - which also shows itself
     in K's small footprint of about 175k bytes - miniscule for what it does .
    A couple of final points :
     Tight coupling means that if the value of a variable is changed
     thru program action , its displayed value immediately reflects the
     change . Vise versa , if the display of a variable is edited , the
     value of the variable is immediately updated to the edited value .
     thus the definition of the f6 attribute of text only needs
     to set l and r and their displays are automatically
     updated .
    " ll : l  ;  r : ( .R `xeq ) ( l : * ( v : _v ) i : _i ) "
     Vise versa , if r is edited , its changed value can be captured
     by , e.g. ,
      newjob..a : r
     Lastly , dotted references should never be used in functions unless
     you really know what you are doing . When compiled in a definition ,
     they produce absolute pointers to the object in its dictionary . If
     anything attempts to modify the structure of the dictionaries involved ,
     a dreaded reference error is produced blowing away all
     definitions in the dictionary . In a note on the K maillist , Arthur
     indicated he felt this absolute addressing was a core design error .
     I recently sent him a note defending the likelihood of some need for
     such a low overhead facility .  Since more recently integrating  Kdb
     along side K.CoSy , I have come to agree with him
     -- 'taint worth the hassle .
     In the next part , I will discuss the several alternative forms of
     reference which avoid the problem .
    To see more about K.CoSy and subscribe , download , and start using K.CoSy for your own needs , klik here .
